Dingo 150 Front Suspension,Brake,Hub Single A Arm

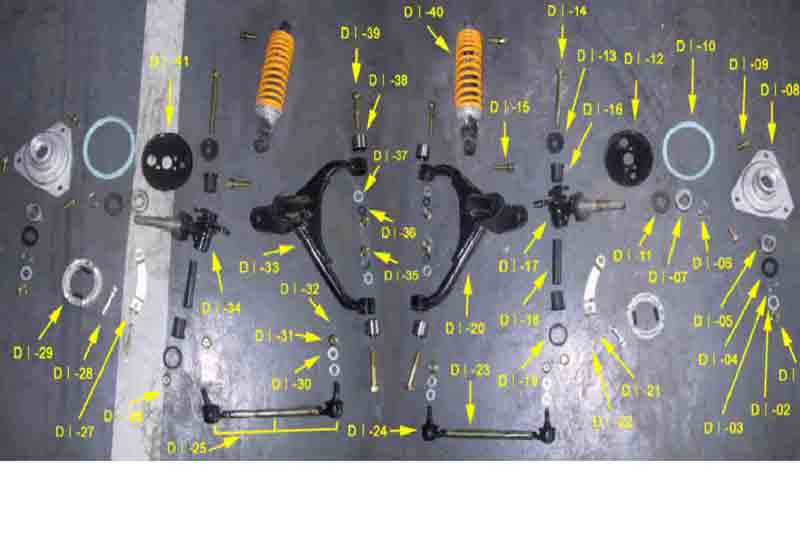

Dingo 150 Single A Arm

Item NoDescriptionPriceQuantity
1 Slotted Nut M16x1.5 $6.49
2 Washer Φ14xΦ27x1.5 $2.99
3 Sleeve Bushing(1)Φ15.4xΦ20x7 $2.99
4 Oil seal Φ19xΦ35x5 $4.99
5 Wheel Bearing 6202 $9.99
6 Sleeve Bushing(2)Φ17.5xΦ23.5x12.5 $4.99
7 Bearing 6203 $9.99
9 Stud- 10mm x 1.25mm - 32mm - 12mm (wheel bolt) $7.99
10 Gasket δ=3 $4.99
11 Oil Seal Φ21x40x6 $4.99
12 Dust Cover-Knockle LH $14.99
13 Dust Cover w/ Clip $5.99
14 Bolt M10x1.25x135 $9.99
15 Bolt M10x1.25x38 $7.99
16 Rubber Sleeve Bushing $5.99
17 Stub Alxe RH $79.99
18 King Pin-Stub Axle $19.99
19 O-ring Φ14x2.56 $9.99
20 A Arm RH $89.99
21 Pin $2.99
22 Nut M5 (thin) $2.99
23 Drag Link Stem $9.99
23 Drag Link Stem $9.99
25 Drag link assy $39.99
26 Lock Nut M10x1.25 $5.99
27 Brake Arm $9.99
28 Brake Camshaft-Front $9.99
29 Brake Shoe Assy-Front $19.99
30 Washer Φ10 $2.99
31 Castle Nut M10x1.25 $4.99
32 Cotter Pin $2.99
33 Cotter Pin $2.99
34 Stub Alxe LH $79.99
35 Nut M10x1.25 $4.99
36 Spring Washer Φ10 $2.99
37 Washer Φ10 $2.99
38 [OUT OF STOCK] Sleeve Bushing 10x28x22 $9.99
39 Bolt M10x1.25x80 $7.99
40 Front shock (Dingo single A arm) $59.99
41 Dust Cover-Knockle RH $14.99
43 Dingo 150 hub, three holes (w/bearing & oil seal)- old type $39.99
